*AstraHP Coated* Whiteside 6210 Surfacing & Flattening CNC Router Bit 1/4″ Shank
$55.99

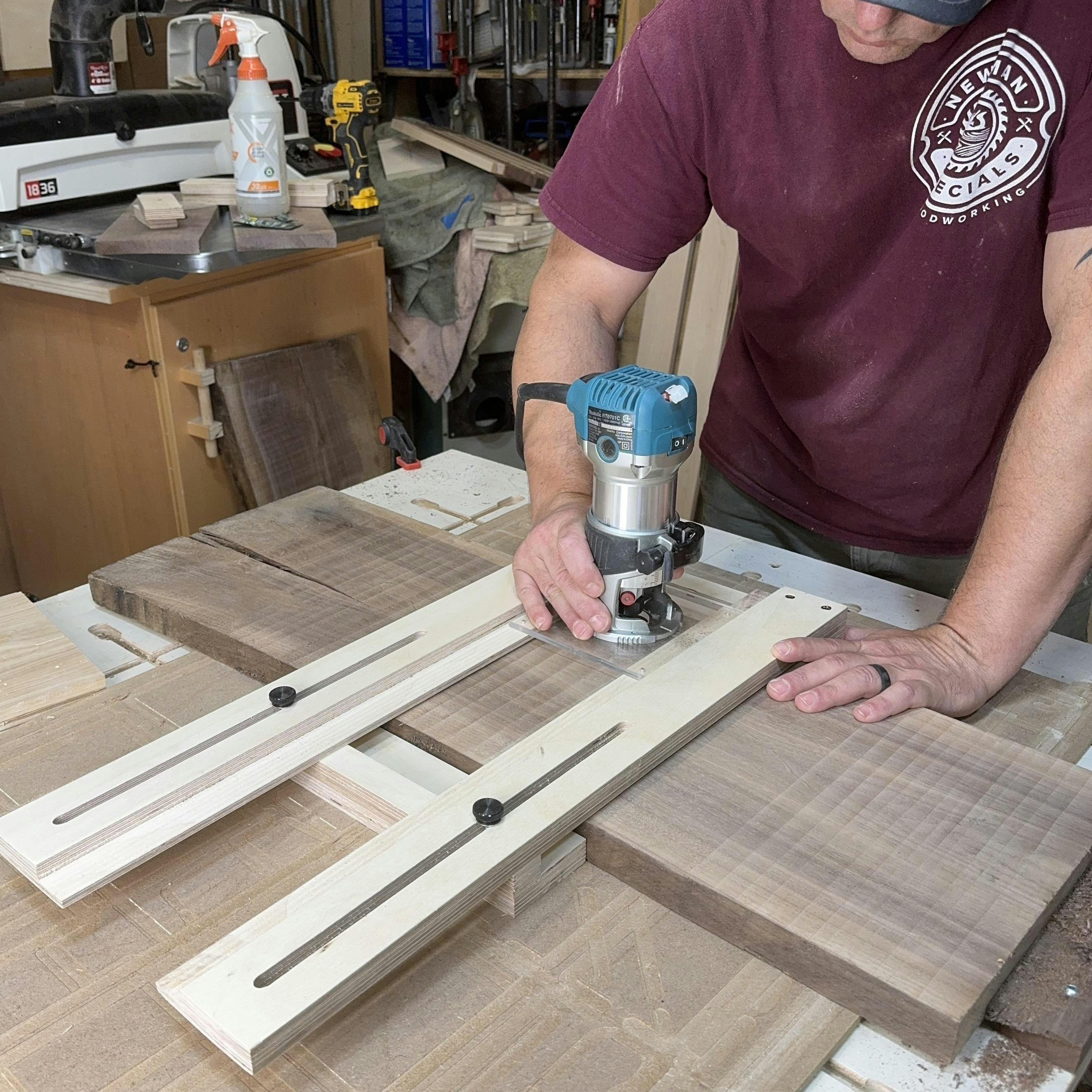

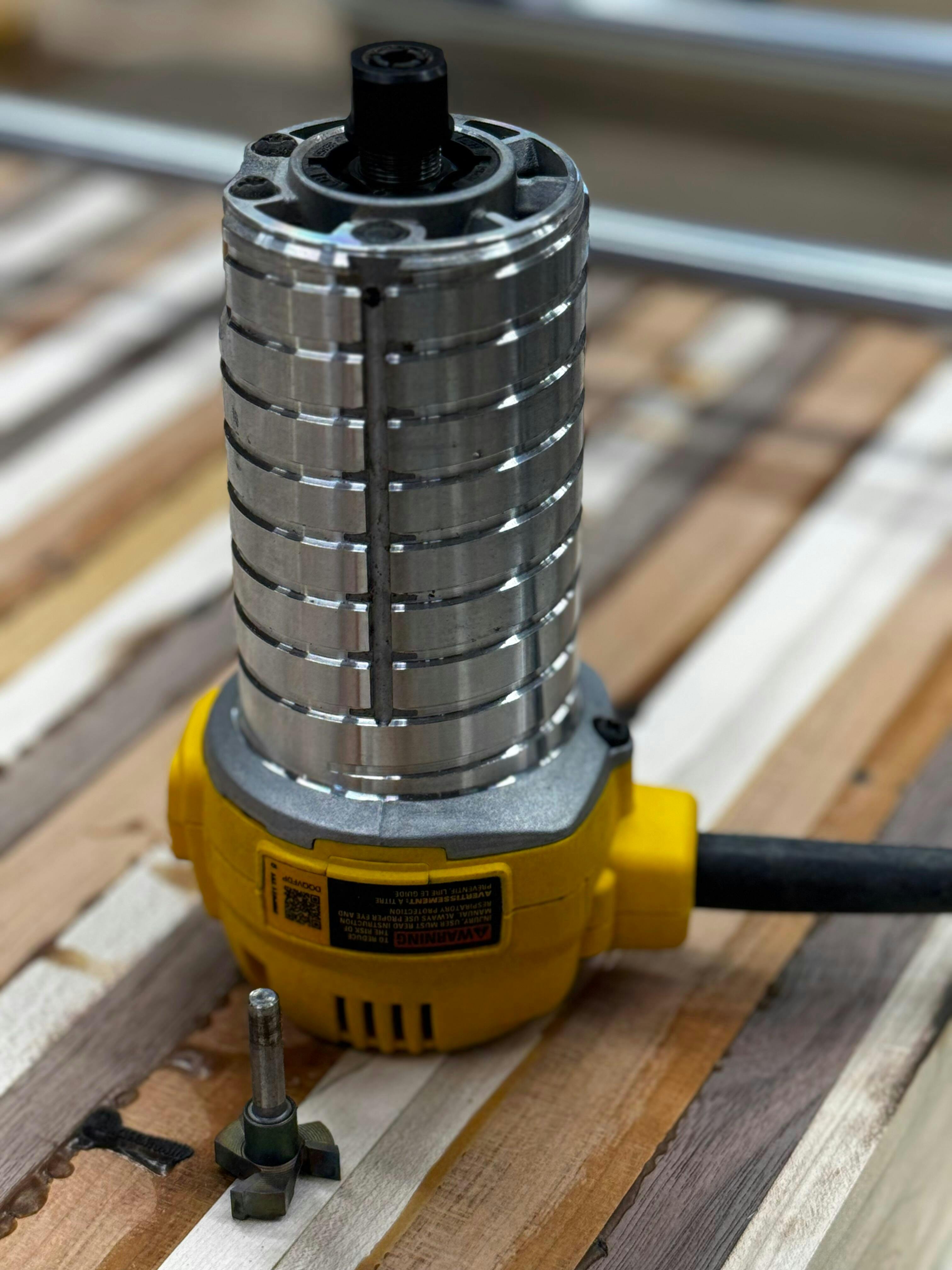

The *AstraHP Coated* Whiteside 6210 1/4 ” router flattening bit can be used in both a CNC machine for spoilboard or slab flattening or in a handheld router on a flattening jig. 1/4″ shank fits most routers and trim routers as well as CNC spindles. Brazed Carbide inserts on the end of all three wings give you a smooth finish.Â
- AstraHP Coated
- 1/4″ Shank
- 1″ Cut Diameter
- 1/4″ Cut Length
- 1-3/4″ Overall Length
- Can be used for epoxy flattening
- Made In USA
In stock

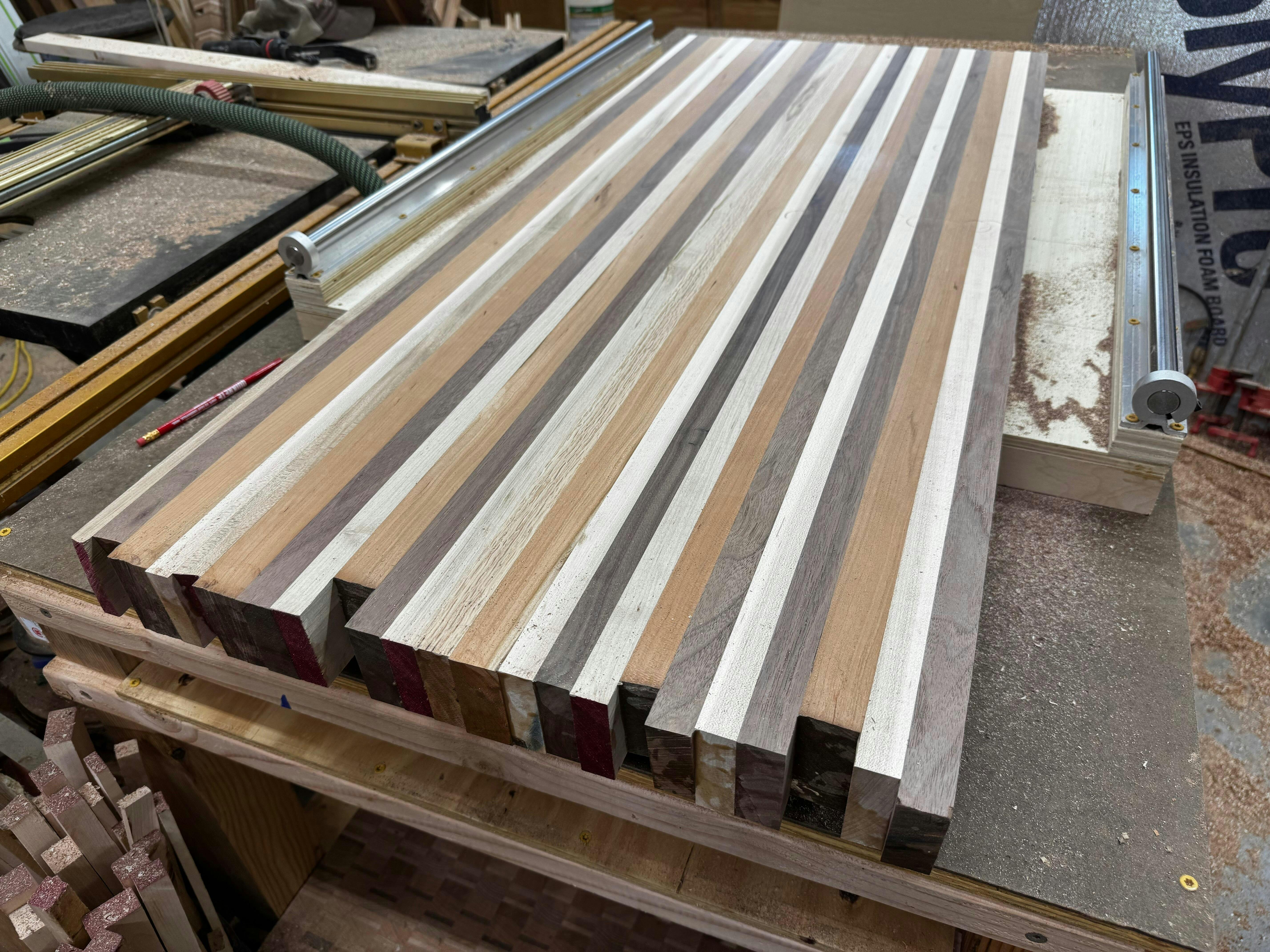

*Astra Coated* Whiteside 6210 router flattening bit with 1/4″ shank clears the surface of your spoilboard creating a base surface that is perpendicular to the router motor. This surfacing bit can also be used to flatten live edge boards that may be too large to go through your planer, and it can also be used to flatten epoxy as well. The Whiteside 6210 is a versatile bit that should be part of your shop!
| Weight | 0.075 lbs |
|---|---|
| Brand | Whiteside |
| Shank | 1/4" |
| Cut Length | 1/4" |
| Large Diameter | 1" |
Speeds & Feeds
Spindle Speed: 14,000 RPM
Feed Rate: 100-150IPM
Depth per Pass: 1/16″-1/8″
2 reviews for *AstraHP Coated* Whiteside 6210 Surfacing & Flattening CNC Router Bit 1/4″ Shank
Add a review
Related products
V-Groove Router Bits
*AstraHP Coated* Whiteside 1550 – 60 Degree V-Groove -1/2″ Dia. CNC Router Bit
1/4 Inch End Mills
*AstraHP Coated* Bits&Bits 425-UP250 – 1/4″ ‘O’ Flute Spiral Bit for Plastic and Aluminum
Flattening, Surfacing, & Planing Router Bits
Dean Olafson (verified owner) –
I ordered this bit from Canada and got great help from MJ with the order and shipping advice. I am a bit of a Luddite with on-line orders and MJ really helped me out. It arrived in quick order by US Post. I used it on a piece of live edge walnut and man did it ever work well! The material removal rate (for all you engineers out there) was superb and there was no damage to the work piece even though I was going a bit deeper than I maybe should have been :). I did both sides of a piece about 4′ x 2′ and there is no sign of wear on the bit. I am happy in every possible way with the product and service I received from Bits & Bits and I will be back!
John S Pack (verified owner) –
This was my first attempt at surfacing anything. It did a great job. I was able to talk with the folks at Bits & Bits before I bought it and they were very friendly and helpful. My project is a 48′ end slab of a Northwest fir tree that has been sitting in my barn for 8 years so I figured it was time to finish it. Very happy with the bit and will probably buy the 1/2″ version of it for my next project. Thank you bits & bits for the help!
