*Astra Coated* Bits&Bits 425-CR120 – 120 Degree Single Flute V-Bit x 1/4″ Shank CNC Bit
$25.00
Solid Carbide Engraving Router Tool – 120 degrees .005 tip. This is a popular tool for engraving fine detail on wood, plastic and aluminum.
- Astra Coated
- Solid Carbide
- Single Flute
- Tip Diameter: .005 (0.127mm)
- Included angle: 120 degrees
- Side angle: 60 degrees
- Shank Diameter: 1/4″
- Tool Length: 2-1/2″
Out of stock
Want to be notified when this product is back in stock?

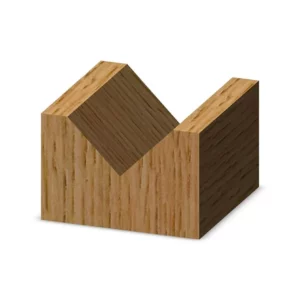

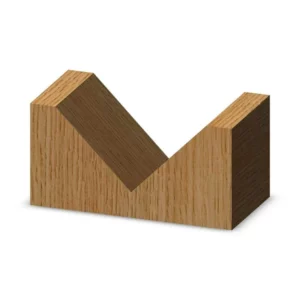

This router bit is used for engraving or cutting V-grooves and 60 degree chamfers in wood, plastic, and acrylic and even on aluminum.
This V-Bit Features:
- Cutting Tip – .005 inches (.127mm) ball
- Length of Cut – .100 inches (2.54mm)
- Included angle – 120 degrees (60 degrees per side)
- Solid Carbide
- Shank Diameter: 1/4
- Tool Length: 2-1/2 inches
Excellent for Cutting:
- Aluminum
- Plastic/Acrylic
- Brass
- Wood
Made in the USA by Bits & Bits Company
This data serves as a general guidance only.
Soft Woods/ Hard Woods/Plastics/Aluminum
Spindle Speed- RPM: 16-18K
Feed Rate – IPM : 40-110″
| Weight | 0.07 lbs |
|---|---|
| Brand | Bits & Bits |
| Shank | 1/4" |
| Cut Diameter | 1/4" (.25") |
| Cut Length | 1/4" |
| Cut Angle | 120 |
